2.2  Finite-State Transducers

      Abstracted Finite-Memory Programs
      Finite-State Transducers
      Configurations and Moves of Finite-State Transducers
      Determinism and Nondeterminism in Finite-State Transducers
      Computations of Finite-State Transducers
      Relations and Languages of Finite-State Transducers
      From Finite-State Transducers to Finite-Memory Programs

Central to the investigation of finite-memory programs is the observation that the set of all the states reachable in the computations of each such program is finite. As a result, the computations of each finite-memory program can be characterized by a finite set of states and a finite set of rules for transitions between those states.

 Abstracted Finite-Memory Programs

Specifically, let P be a finite-memory program with m variables x₁, . . . , x_m, and k instruction segments I₁, . . . , I_k. Denote the initial value of the variables of P with .

Each state of P is an (m + 1)-tuple [i, v₁, . . . , v_m], where i is an integer between 1 and k, and v₁, . . . , v_m are values from the domain of the variables. Intuitively, a state [i, v₁, . . . , v_m] indicates that the program reached instruction segment I_i with values v₁, . . . , v_m in the variables x₁, . . . , x_m, respectively.

Example 2.2.1    Let P be the program in Figure 2.2.1. The domain of the variables is assumed to equal {0, 1}, and the initial value is assumed to be 0. Let [i, x, y] denote the state of P that corresponds to the ith instruction segment I_i, the value x in x, and the value y in y.

x := ?                             /* I1  */
write x                                      /* I2  */
do                                             /* I3  */
    do                                         /* I4  */
        read y                               /* I5  */
    until x = y                           /* I6  */
    if eof then accept                /* I7  */
    do                                         /* I8  */
        x := x - 1                  /* I9  */
    or
        y := y + 1                  /* I10 */
    until x y                           /* I11 */
until false                       /* I12 */

The state [1, 0, 0] indicates that the program reached the first instruction segment with the value 0 in x and y. The state [5, 1, 0] indicates that the program reached the fifth instruction segment with the value 1 in x and the value 0 in y.

From state [5, 1, 0] the program can reach either state [6, 1, 0] or state [6, 1, 1]. In the transition from state [5, 1, 0] to state [6, 1, 0] the program reads the value 0 and writes nothing. In the transition from state [5, 1, 0] to state [6, 1, 1] the program reads the value 1 and writes nothing.

The computational behavior of P can be abstracted by a formal system <Q, , , , q₀, F>, which is defined through the algorithm below. In the formal system

Q

represents the set of states that P can reach.

represents the set of transitions that P can take between its states.

represents the set of input values that P can read.

represents the set of output values that P can write.

q₀

represents the initial state of P.

F

represents the set of accepting states that P can reach.

Step 1

Initiate Q to the set containing just q₀ = [1, , . . . , ], and to be an empty set. q₀ is called the initial state of P, and is called the transition table of P.

Step 2

Add the state p = [j, u₁, . . . , u_m] of P to Q, if for some state q = [i, v₁, . . . , v_m] in Q the following condition holds: P can, by executing I_i with values v₁, . . . , v_m in its variables, reach I_j with u₁, . . . , u_m in its variables, respectively.

Step 3

Add (q, , (p, )) to , if P, by executing a single instruction segment, can go from state q in Q to state p in Q while reading and writing . For notational convenience, in what follows (q, , (p, )) will be written as (q, , p, ). Each tuple in is called a transition rule of P.

Step 4

Repeat Steps 2 and 3 as long as more states can be added to Q or more transition rules can be added to .

Step 5

Initialize , , and F to be empty sets.

Step 6

If (q, , p, ) is a transition rule in and then add to . Similarly, if (q, , p, ) is a transition rule in and , then add to . Each in is called an input symbol of P, and is called the input alphabet of P. Similarly, each in is called an output symbol of P, and is called the output alphabet of P.

Step 7

Insert to F each state [i, v₁, . . . , v_m] in Q for which I_i is a conditional accept instruction. The states in F are called the accepting , or the final , states of P.

Example 2.2.2    Assume the notations of Example 2.2.1. The initial state of the program P is [1, 0, 0]. By executing the first instruction, the program can move from state [1, 0, 0] and either enter the state [2, 0, 0] or the state [2, 1, 0]. In both cases, no input symbol is read and no output symbol is written during the transition between the states. Hence, the transition table for P contains the transition rules ([1, 0, 0], , [2, 0, 0], ) and ([1, 0, 0], , [2, 1, 0], ).

Similarly, by executing its second instruction, the program P must move from state [2, 1, 0] and enter state [3, 1, 0] while reading nothing and writing 1. Hence, contains also the transition rule ([2, 1, 0], , [3, 1, 0], 1).

The number of states in Q is no greater than 12 × 2 × 2. {0, 1} is the input and the output alphabet for the program P. {[7, 0, 0], [7, 1, 1]} is the set of accepting states for P.

 Finite-State Transducers

In general, a formal system M consisting of a six-tuple <Q, , , , q₀, F> is called a finite-state transducer if it satisfies the following conditions.

Q

is a finite set, whose members are called the states of M.

is an alphabet, called the input alphabet of M. Each symbol in is called an input symbol of M.

is an alphabet, called the output alphabet of M. Each symbol in is called an output symbol of M.

is a relation from Q × ( {})   to   Q × ( {}), called the transition table of M. Each tuple (q, , (p, )), or simply (q, , p, ), in is called a transition rule of M.

q₀

is a state in Q, called the initial state of M.

F

is a subset of Q, whose states are called the accepting , or the final , states of M.

The transition rule (q₀, a, q₁, 1) of M uses the input symbol a and the output symbol 1. The transition rule (q₁, a, q₀, ) of M uses the input symbol a and no output symbol.

Each finite-state transducer <Q, , , , q₀, F> can be graphically represented by a transition diagram of the following form. For each state in Q the transition diagram has a corresponding node, which is shown by a circle. The initial state is identified by an arrow from nowhere that points to the corresponding node. Each accepting state is identified by a double circle. Each transition rule (q, , p, ) in is represented by an edge labeled with /, from the node labeled by state q to the node labeled by state p. For notational convenience edges that agree in their origin and destination are merged, and their labels are separated by commas.

Example 2.2.4    The transition diagram in Figure 2.2.2

Figure 2.2.2 Transition diagram of a finite-state transducer.

Example 2.2.5    The transition diagram in Figure 2.2.3

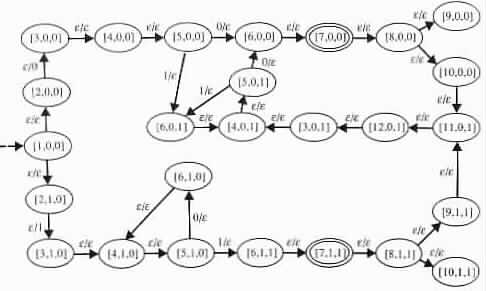

Figure 2.2.3 Transition diagram for the program of Figure 2.2.1.

 Configurations and Moves of Finite-State Transducers

Intuitively, a finite-state transducer M = <Q, , , , q₀, F> can be viewed as an abstract computing machine. The computing machine consists of a finite-state control, an input tape, a read-only input head, an output tape, and a write-only output head (see Figure 2.2.4).

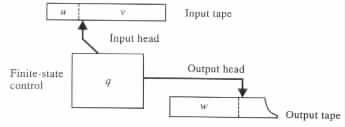

Figure 2.2.4 A view of a finite-state transducer as an abstract computing machine.

The input tape is used for holding the input uv of M. The input head is used for accessing the input tape. The output tape is used for holding the output w of M, and the output head is used for accessing the output tape. The finite-state control is used for recording the state of M.

On each input a₁ a_n from *, the computing machine M has some set of possible configurations. Each configuration , or instantaneous description, of M is a pair (uqv, w), where q is a state in Q, uv = a₁ a_n, and w is a string in *. Intuitively, a configuration (uqv, w) says that M on input uv reached state q after reading u and writing w. With no loss of generality it is assumed that Q and are mutually disjoint.

Example 2.2.6    Let M be the finite-state transducer of Example 2.2.3 (see Figure 2.2.2). The configuration (aabq₁ba, 1) of M says that M reached the state q₁ after reading u = aab from the input tape and writing w = 1 into the output tape. In addition, the configuration says that v = ba is the remainder of the input (see Figure 2.2.5(a)).

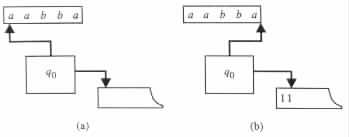

Figure 2.2.5 Configurations of the finite-state transducer of Figure 2.2.2.

The configuration (q₀aabba, ) of M says that M reached the state q₀ after reading nothing (i.e., u = ) from the input tape and writing nothing (i.e., w = ) into the output tape. In addition, the configuration says that v = aabba is the input to be consumed (see Figure 2.2.5(b)).

The configuration (aabbaq₀, 1) of M says that M reached state q₀ after reading all the input (i.e., v = ) and writing w = 11. In addition, the configuration says that the input that has been read is u = aabba.

A configuration (uqv, w) of M is said to be an initial configuration if q = q₀ and u = w = . An initial configuration says that the input head is placed at the start (leftmost position) of the input, the output tape is empty, and the finite-state control is set to the initial state.

A configuration (uqv, w) of M is said to be an accepting configuration if v = and q is an accepting state in F. An accepting configuration says that M reached an accepting state after reading all the input.

Example 2.2.7    The finite-state transducer M of Example 2.2.3 (see Figure 2.2.2) has the initial configuration (q₀aabba, ), and the accepting configuration (aabbaq₀, 11) on input aabba (see Figure 2.2.5(a) and Figure 2.2.5(b), respectively).

(aabbaq₀, ) and (aabbaq₀, 111) are also accepting configurations of M on input aabba. On the other hand, (q₀aabba, ) is the only initial configuration of M on input aabba.

The transition rules of M are used for defining the possible moves of M. Each move uses some transition rule. A move on transition rule (q, , p, ) consists of changing the state of the finite-state control from q to p, of reading from the input tape, of writing to the output tape, and of moving the input and the output heads, || and || positions to the right, respectively.

A move of M from configuration C₁ to configuration C₂ is denoted C_{1 M} C₂, or simply C₁ C₂ if M is understood. A sequence of zero or more moves of M from configuration C₁ to configuration C₂ is denoted C_{1 M} * C₂, or simply C₁ * C₂, if M is understood.

Example 2.2.8    Let M be the finite-state transducer of Example 2.2.3 (see Figure 2.2.2). On input aabba, M can have the following sequence (q₀aabba, ) * (aabbaq₀, 11) of moves between configurations (see Figure 2.2.6):

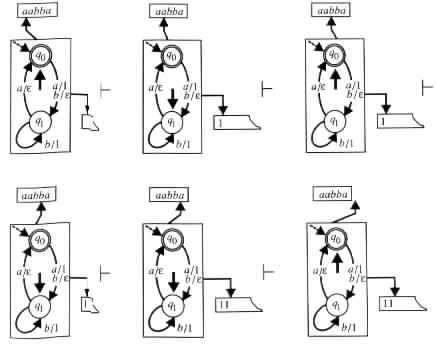

Figure 2.2.6 Sequence of moves between configurations of a finite-state transducer.

The sequence consists of five moves. It starts with a move (q₀aabba, ) (aq₁abba, 1) on the first transition rule (q₀, a, q₁, 1) of M. During the move, M makes a transition from state q₀ to state q₁ while reading a and writing 1.

The second move (aq₁abba, 1) (aaq₀bba, 1) is on the fourth transition rule (q₁, a, q₀, ) of M. During the move, M makes a transition from state q₁ to state q₀ while reading a and writing nothing.

The sequence continues by a move on the second transition rule (q₀, b, q₁, ), followed by a move on the third transition rule (q₁, b, q₁, 1), and it terminates after an additional move on the fourth transition rule (q₁, a, q₀, ).

The sequence of moves is the only one that can start at the initial configuration and end at an accepting configuration for the input aabba.

By definition, || = 0 or || = 1 in each transition rule (q, , p, ). || = 0 if no input symbol is read during the moves that use the transition rule (i.e., = ), and || = 1 if exactly one input symbol is read during the moves. Similarly, || = 0 or || = 1, depending on whether nothing is written during the moves or exactly one symbol is written, respectively.

 Determinism and Nondeterminism in Finite-State Transducers

A finite-state transducer M = <Q, , , , q₀, F> is said to be deterministic if, for each state q in Q and each input symbol a in , the union (q, a) (q, ) is a multiset that contains at most one element.

Intuitively, M is deterministic if each state of M fully determines whether an input symbol is to be read on a move from the state, and the state together with the input to be consumed in the move fully determine the transition rule to be used.

A finite-state transducer is said to be nondeterministic if the previous conditions do not hold.

Example 2.2.9    The finite-state transducer M₁, whose transition diagram is given in Figure 2.2.2, is deterministic. In each of its moves M₁ reads an input symbol. The transition rule to be used in each move is uniquely determined by the state and the input symbol being read.

If M₁ reads the input symbol a in the move from state q₀, then M₁ must use the transition rule (q₀, a, q₁, 1) in the move. If M₁ reads the input symbol b in the move from state q₀ then M₁ must use the transition rule (q₀, b, q₁, ) in the move.

On the other hand, consider the finite-state transducer M₂, which satisfies M₂ = <Q, , , , q₀, F> for Q = {q₀, q₁, q₂, q₃}, = {a, b}, = {a, b}, = {(q₀, a, q₁, a), (q₁, , q₂, a), (q₂, , q₁, b), (q₂, b, q₀, ), (q₂, b, q₃, a)}, and F = {q₃}. The transition diagram of M₂ is given in Figure 2.2.7.

Figure 2.2.7 A nondeterministic Turing transducer.

On moving from state q₀, the finite-state transducer M₂ must read an input symbol. On moving from state q₁, the finite-state transducer M₂ does not read an input symbol. The transition rules that M₂ can use on moving from states q₀ and q₁ are uniquely determined by the states, and, therefore, these states are not the source for the nondeterminism of M₂.

The source for the nondeterminism of M₂ is in the transition rules that originate at state q₂. The transition rules do not determine whether M₂ has to read a symbol in moving from state q₂, nor do they specify which of the transition rules is to be used on the moves that read the symbol b.

 Computations of Finite-State Transducers

The computations of the finite-state transducers are defined in a manner similar to that for the programs. An accepting computation of a finite-state transducer M is a sequence of moves of M that starts at an initial configuration and ends at an accepting configuration. A nonaccepting , or rejecting, computation of M is a sequence of moves on an input x for which the following conditions hold.

1.  The sequence starts from the initial configuration of M on x.
2.  If the sequence is finite, then it ends at a configuration from which no move is possible.
3.  M has no accepting computation on x.

A computation is said to be a halting computation if it consists of a finite number of moves.

Example 2.2.10    Let M be the finite-state transducer of Example 2.2.3 (see Figure 2.2.2). On input aabba the finite-state transducer M has a computation that is given by the sequence of moves in Example 2.2.8 (see Figure 2.2.6). The computation is an accepting one.

Alternatively, on input aab the finite-state transducer M has the following sequence of moves: (q₀aab, ) (aq₁ab, 1) (aaq₀b, 1) (aabq₁, 1). This sequence is the only one possible from the initial configuration of M on input abb; it is a nonaccepting computation of M.

The two computations in the example are halting computations of M.

By definition, on inputs that are accepted by a finite-state transducer the finite-state transducer may have also executable sequences of transition rules which are not considered to be computations.

Example 2.2.11    Consider the finite-state transducer M whose transition diagram is given in Figure 2.2.7. On input ab, M has the accepting computation that moves along the sequence of states q₀, q₁, q₂, q₃. Similarly, on input ab, M also has an accepting computation that moves along the sequence of states q₀, q₁, q₂, q₁, q₂, q₃. However, on input ab across the states q₀, q₁, q₂, q₀, M's sequence of moves is not a computation of M.

On input a the finite-state transducer has only one computation. The computation is a nonhalting computation that goes along the sequence of states q₀, q₁, q₂, q₁, q₂, . . . On the other hand, on input aba the Turing transducer has infinitely many halting computations and infinitely many nonhalting computations. All the computations on input aba are nonaccepting computations.

The halting computations of M on input aba consume just the prefix ab of M and move through the sequences q₀, q₁, q₂, q₁, q₂, . . . , q₁, q₂, q₃ of states. The nonhalting computations of M on input aba consume the input until its end and move through the sequences q₀, q₁, q₂, q₁, q₂, . . . , q₁, q₂, q₀, q₁, q₂, q₁, q₂, . . . of states.

By definition, each move in each computation must be on a transition rule that allows the computation to eventually read all the input and thereafter reach an accepting state. Whenever more than one such alternative exists in the set of feasible transition rules, any of these alternatives can be chosen. Similarly, whenever none of the feasible transition rules satisfy the conditions above, then any of these transition rules can be chosen. This fact suggests that we view the computations of the finite-state transducers as being executed by imaginary agents with magical power.

An input x is said to be accepted , or recognized , by a finite-state transducer M if M has an accepting computation on x. An accepting computation that terminates in an accepting configuration (xq_f, y) is said to have an output y. The output of a nonaccepting computation is assumed to be undefined.

A finite-state transducer M is said to have an output y on input x if it has an accepting computation on x with output y. M is said to halt on x if all the computations of M on input x are halting computations.

Example 2.2.12    The finite-state transducer M whose transition diagram is given in Figure 2.2.8

Figure 2.2.8 A nondeterministic finite-state transducer.

M accepts all inputs. However, the finite-state transducer of Example 2.2.11 accepts exactly those inputs that have the form ababa bab.

As in the case of programs, the semantics of the finite-state transducers are characterized by their computations. Consequently, the behavior of these transducers are labeled with respect to their computations.

For instance, a finite-state transducer M is said to move from configuration C₁ to configuration C₂ on x if C₂ follows C₁ in the considered computation of M on x. Similarly, M is said to read from its input if is consumed from the input in the considered computation of M.

Example 2.2.13    The finite-state transducer whose transition diagram is given in Figure 2.2.8 on input baabb starts its computation with a move that takes M from state q₀ to state q₂. M then makes four moves, which consume baab and leave M in state q₂. Finally, M moves from state q₂ to state q₃ while reading b.

 Relations and Languages of Finite-State Transducers

The relation computed by a finite-state transducer M = <Q, , , , q₀, F>, denoted R(M), is the set { (x, y) | (q₀x, ) * (xq_f, y) for some q_f in F }. That is, the relation computed by M is the set of all the pairs (x, y) such that M has an accepting computation on input x with output y.

The language accepted , or recognized, by M, denoted L(M), is the set of all the inputs that M accepts, that is, the set { x | (x, y) is in R(M) for some y }. The language is said to be decided by M if, in addition, M halts on all inputs, that is, on all x in *.

The language generated by M is the set of all the outputs that M has on its inputs, that is, the set { y | (x, y) is in R(M) for some x }.

Example 2.2.14    The nondeterministic finite-state transducer M whose transition diagram is given in Figure 2.2.8 computes the relation R(M) = { (x, 1ⁱ) | x is in {a, b}*, i = number of a's in x if the last symbol in x is a, and i = number of b's in x if the last symbol in x is b }. The finite-state automaton M accepts the language L(M) = {a, b}*.

Example 2.2.15    The nondeterministic finite-state transducer M whose transition diagram is given in Figure 2.2.9

Figure 2.2.9 A finite-state transducer that computes the relation R(M) = { (x, y) | x and y are in {a, b}*, and y x }.

As long as M is in its initial state "x = y" the output of M is equal to the portion of the input consumed so far.

If M wants to provide an output that is a proper prefix of its input, then upon reaching the end of the output, M must move from the initial state to state "y is proper prefix of x."

If M wants its input to be a proper prefix of its output, then M must move to state "x is a proper prefix of y" upon reaching the end of the input.

Otherwise, at some nondeterministically chosen instance of the computation, M must move to state "x is not a prefix of y, and y is not a prefix of x," to create a discrepancy between a pair of corresponding input and output symbols.

 From Finite-State Transducers to Finite-Memory Programs

The previous discussion shows us that there is an algorithm that translates any given finite-memory program into an equivalent finite-state transducer, that is, into a finite-state transducer that computes the same relation as the program. Conversely, there is also an algorithm that derives an equivalent finite-memory program from any given finite-state transducer. The program can be a "table-driven" program that simulates a given finite-state transducer M = <Q, , , , q₀, F> in the manner described in Figure 2.2.10.

state := q0
do
    /* Accept if an accepting state of M is reached at the end of the
    input.                                                                                     */
    if F(state) then
        if eof then accept
    /* Nondeterministically find the entries of the transition rule
    (q, , p, ) used in the next simulated move.                         */
    do in := e or read in until true                  /* in :=   */
    next_ state := ?                            /* next_ state := p  */
    out := ?                                            /* out :=   */
    if not (state, in, next_ state, out) then reject
    /* Simulate the move.  */
    if out e then
        write out
    state := next_ state
until false

The program uses a variable state for recording M's state in a given move, a variable in for recording the input M consumes in a given move, a variable next_ state for recording the state M enters in a given move, and a variable out for recording the output M writes in a given move.

The program starts a simulation of M by initializing the variable state to the initial state q₀ of M. Then M enters an infinite loop.

The program starts each iteration of the loop by checking whether an accepting state of M has been reached at the end of the input. If such is the case, the program halts in an accepting configuration. Otherwise, the program simulates a single move of M. The predicate F is used to determine whether state holds an accepting state.

The simulation of each move of M is done in a nondeterministic manner. The program guesses the value for variable in that has to be read in the simulated move, the state for variable next_ state that M enters in the simulated move, and the value for variable out that the program writes in the simulated move. Then the program uses the predicate to verify that the guessed values are appropriate and continues according to the outcome of the verification.

The domain of the variables of the program is assumed to equal Q {e}, where e is assumed to be a new symbol not in Q , used for denoting the empty string .

In the table-driven program, F is a predicate that assumes a true value when, and only when, its parameter is an accepting state. Similarly, is a predicate that assumes a true value when, and only when, its entries correspond to a transition rule of M.

The programs that correspond to different finite-state transducers differ in the domains of their variables and in the truth assignments for the predicates F and .

The algorithm can be easily modified to give a deterministic finite-memory program whenever the finite-state transducer M is deterministic.

Example 2.2.16    For the finite-state transducer M of Figure 2.2.11(a),

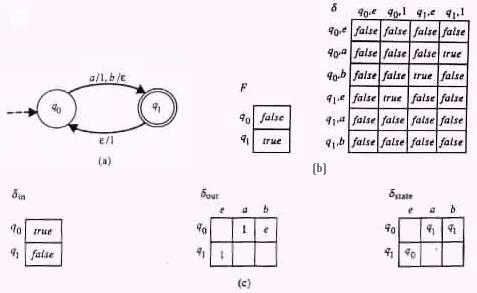

Figure 2.2.11 (a) A finite-state transducer M. (b) Tables for a table-driven program that simulates M. (c) Tables for a deterministic table-driven program that simulates M.

The program also allows that for F and there are parameters that differ from those specified in the tables. On such parameters the predicates are assumed to be undefined.

The finite-state transducer can be simulated also by the deterministic table-driven program in Figure 2.2.12.

state := q0
do
    if F(state) then
        if eof then accept
    if not in(state) then
        in := e
   if in(state) then
        read in
    next_ state := state(state, in)
   out := out(state, in)
   if out e then
        write out
    state := next_ state
until false

The predicate _in determines whether an input symbol is to be read on moving from a given state. The function _out determines the output to be written in each simulated move, and _state determines the state to be reached in each simulated state.

The deterministic finite-state transducer can be simulated also by a non-table-driven finite-memory program of the form shown in Figure 2.2.13.

state := q0
do
    if state = q0 then
    do
        read in
        if in = a then
        do
            state := q1
           out := 1
         write out
        until true
      if in = b then
            state := q1
    until true
   if state = q1 then
    do
        if eof then accept
        state := q0
       out := 1
      write out
    until true
until false

It follows that the finite-state transducers characterize the finite-memory programs, and so they can be used for designing and analyzing finite-memory programs. As a result, the study conducted below for finite-state transducers applies also for finite-memory programs.

Finite-state transducers offer advantages in

1.  Their straightforward graphic representations, which are in many instances more "natural" than finite-memory programs.
2.  Their succinctness, because finite-state transducers are abstractions that ignore those details irrelevant to the study undertaken.
3.  The close dependency of the outputs on the inputs.
